| CUADRO | Modelo | C:62 Advanced Twin Mold, Cableado Interno, AXN |
| Juego de dirección | VP, Top Integrated 1 1/8", Bottom Integrated 1 1/4" | |
| Caja de centros | Shimano SM-BB71-41B, 86mm Pressfit | |
| Caño de asiento | Newmen Advanced, Carbon, 27.2mm | |
| Abrazadera | CUBE Semi-Integrated | |
| SUSPENSIÓN | Horquilla | CUBE C:62 Technology, 1 1/8" - 1 1/4" Tapered, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm |
| Amortiguador | - | |
| TRANSMISIÓN | Cadena | Shimano CN-HG601-11 |
| Descarrilador Trasero | Shimano GRX RD-RX812, Direct Mount, 11-Speed | |
| Descarrilador Delantero | - | |
| Shifters | Shimano GRX ST-RX600 | |

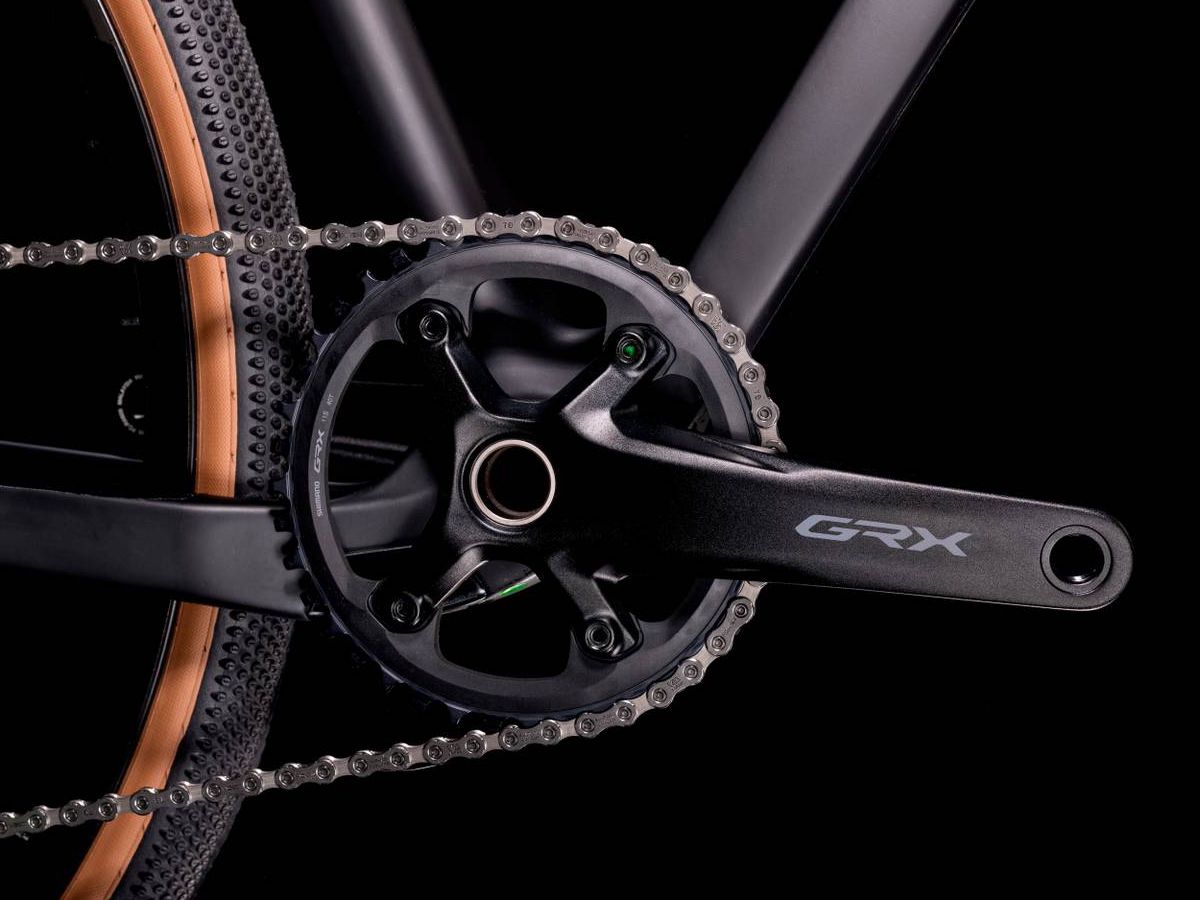

| Plato palanca | Shimano GRX FC-RX600, 40T | |
| Piñon | Shimano SLX CS-M7000, 11-42T | |
| FRENOS | Freno | Shimano GRX BR-RX400, Hydr. Disc Brake |
| Rotores | Flat Mount (160mm/160mm) | |
| Levas de freno | Shimano GRX ST-RX600 | |
| COMPONENTES | Asiento | Natural Fit Nuance Lite |
| Avance | Newmen Evolution 318.4, 31.8mm | |
| Cinta de Manillar | ACID Bartape CX | |
| Manillar | CUBE Gravel Race Bar | |
| RUEDAS | Maza delantera | 12x100mm |
| Maza trasera | 12x142mm | |
| Rayos | - | |
| Aros | Fulcrum Rapid Red 900 Disc, 700x22C, Tubeless Ready | |
| Cubiertas | Schwalbe G-One Allround, Kevlar, 40-622 | |
| ACCESORIOS | Pedales | - |
| PESO | 9,4 kg |
| Talle cuadro | 50cm-XS | 53cm-S | 56cm-M | 58cm-L | 61cm-XL | |
| Rodado | 28" | 28" | 28" | 28" | 28" | |
| ST | Tubo Asiento (mm) | 434.2 | 464.2 | 494.2 | 514.2 | 544.2 |
| TT | Tubo horizontal(mm) | 522 | 537 | 560 | 575 | 592 |
| CS | Largo de cadena (mm) | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA | Angulo tubo dirección (°) | 69 | 70 | 71.5 | 72 | 72.5 |
| STA | Angulo tubo de asiento (°) | 75.3 | 74.5 | 73.5 | 73 | 73 |
| BD | Drop caja de centros/frenos (mm) | 70 | 70 | 70 | 70 | 70 |
| HT | Tubo de dirección (mm) | 102 | 124 | 154 | 174 | 197 |
| FL | Largo horquilla(mm) | - | - | - | - | - |
| R | Alcance(mm) | 385.7 | 386.2 | 388.8 | 391.9 | 401.6 |
| S | Drop caja de centros/manillar (mm) | 519.4 | 543.8 | 578.1 | 598.8 | 622.7 |
| WB | Distancia entre ejes (mm) | 1041.4 | 1041.5 | 1041.2 | 1046 | 1058 |
| SH | Altura al piso (mm) | 749.3 | 776.9 | 808.1 | 828 | 854.7 |
