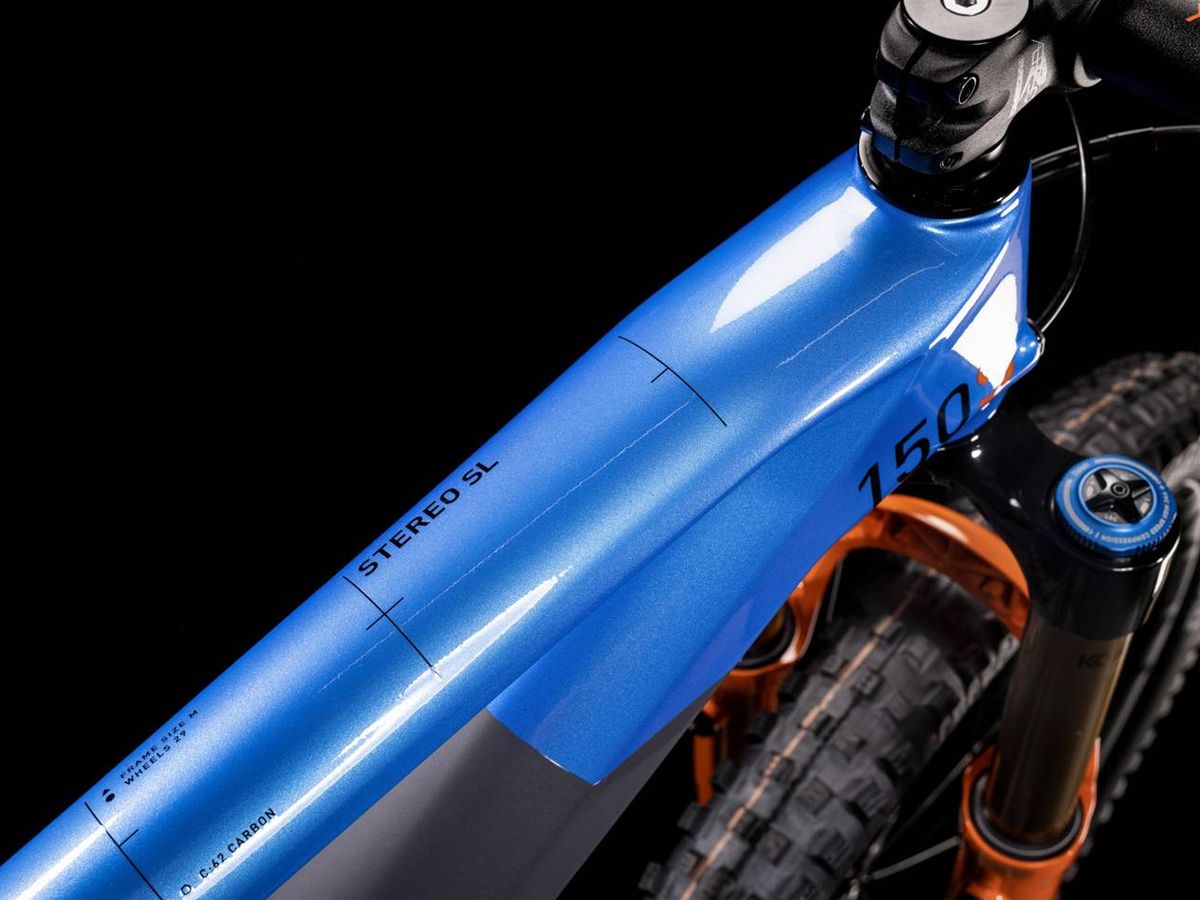

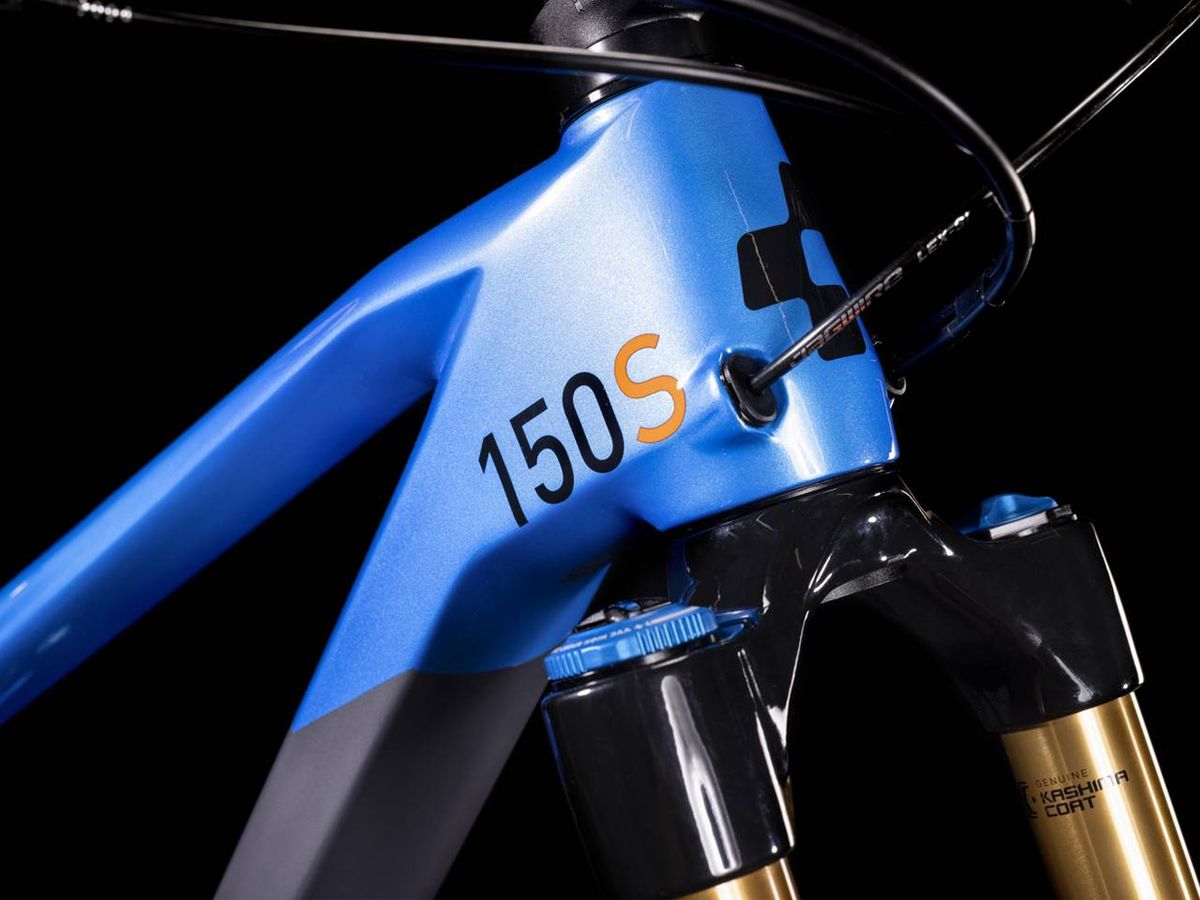

| CUADRO | Modelo | C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH |
| Color | ||
| Juego de dirección | VP Integrated, Top 1 1/8", Bottom 1 1/2" | |
| Caja de centros | ||

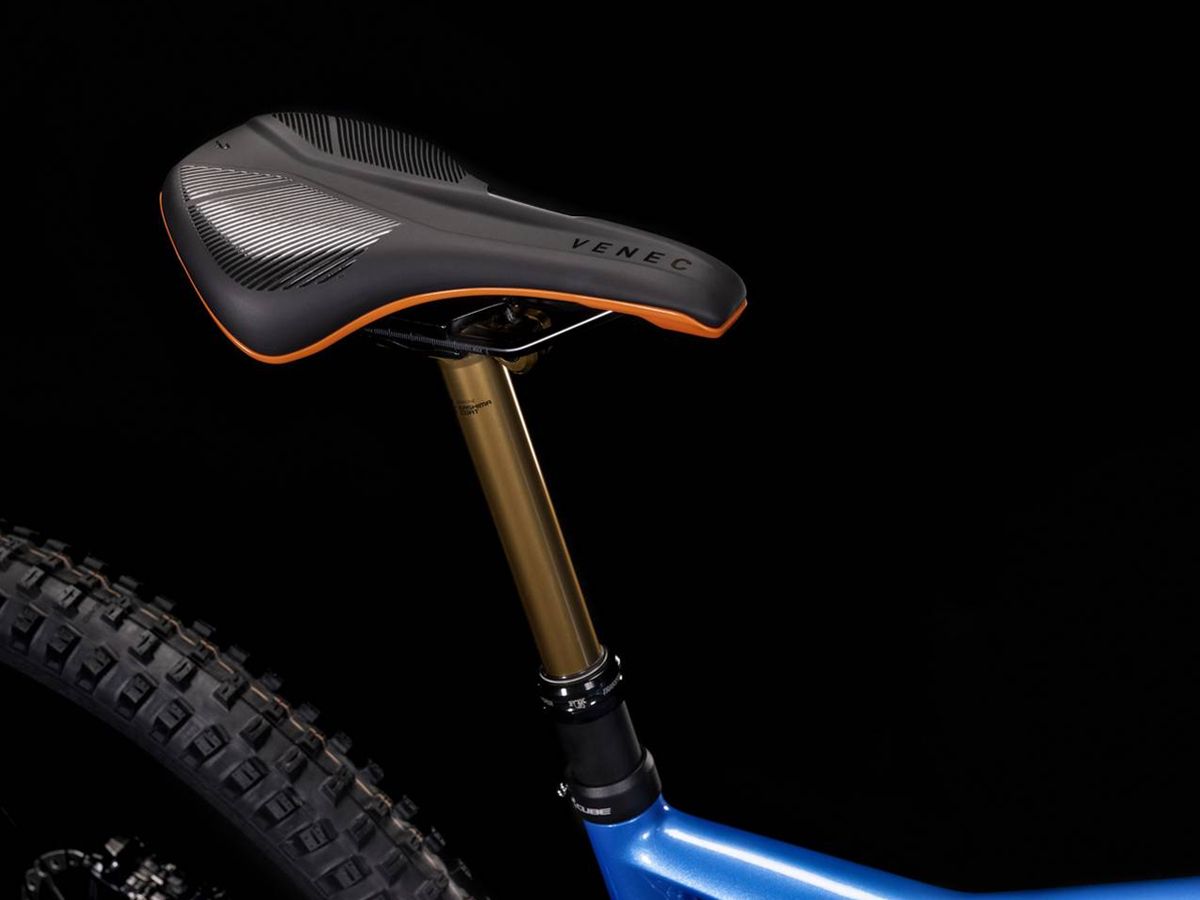

| Caño de asiento | Fox Transfer Factory 31.6mm, Kashima Coated (S: 125mm, M/L: 150mm, XL: 175mm) | |
| Abrazadera | ||

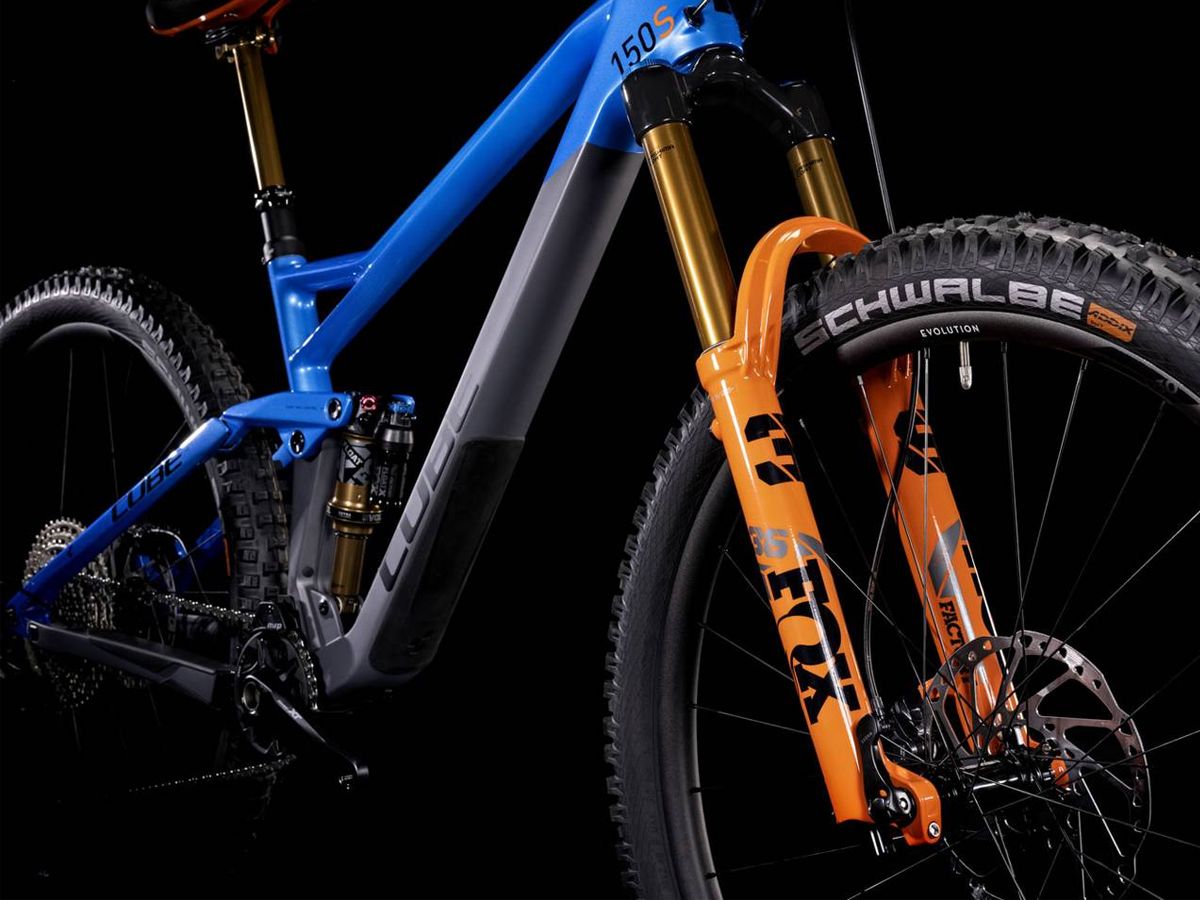

| SUSPENSIÓN | Horquilla | Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 160mm, Kashima Coated |

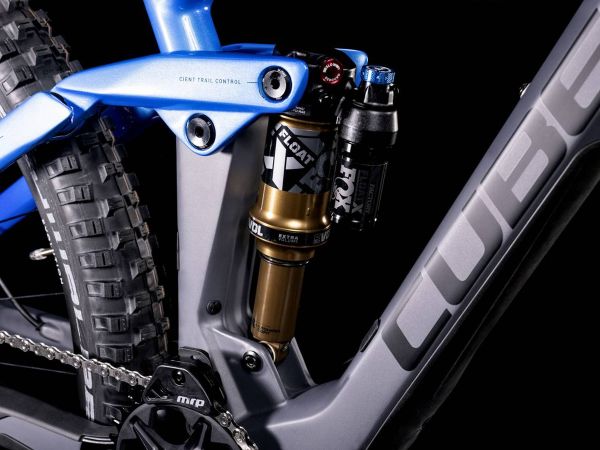

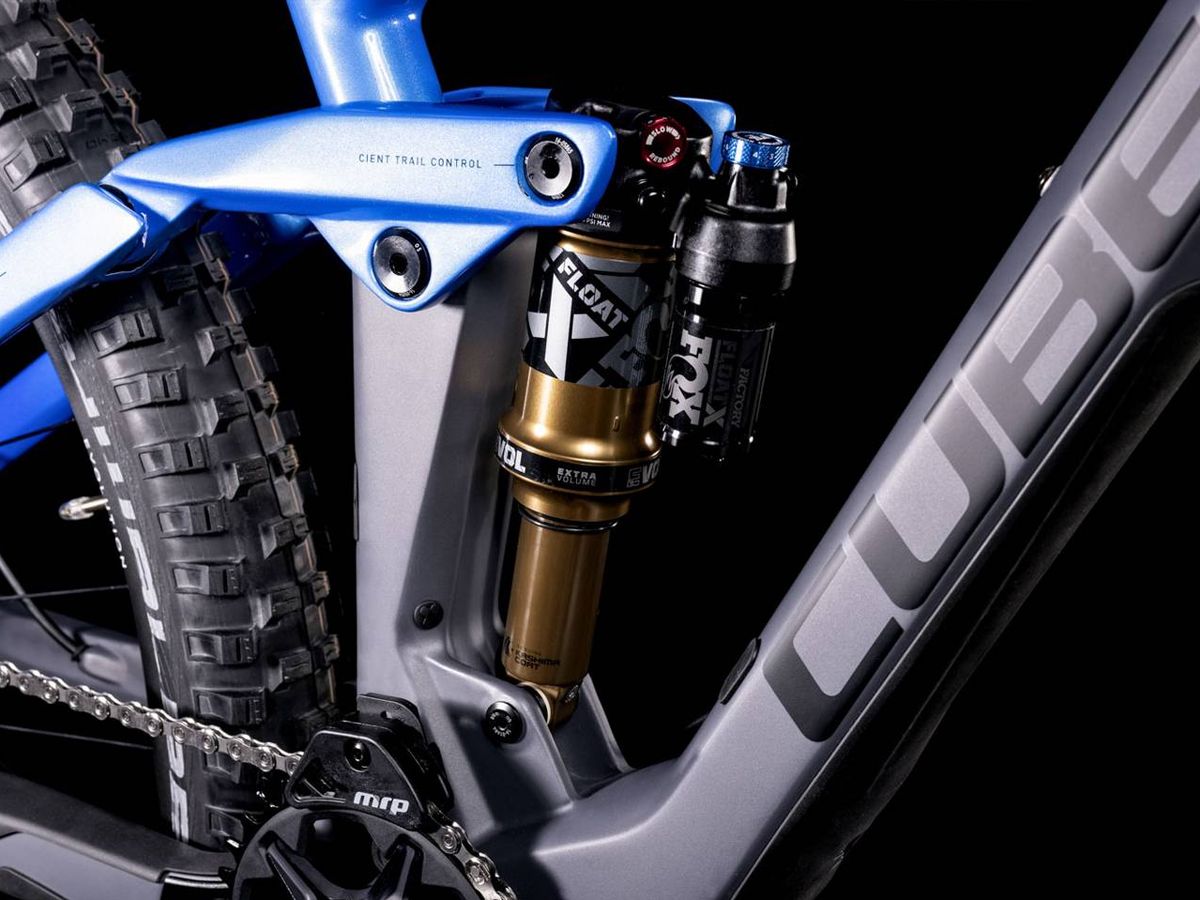

| Amortiguador | Fox Float X Factory, 185x55mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated | |
| TRANSMISIÓN | Cadena | Shimano CN-M6100 |
| Cambio | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed | |
| Guia de Cadena | MRP 1X Chain Guide | |
| Shifters | Shimano XT SL-M8100-IR, Direct Attach | |

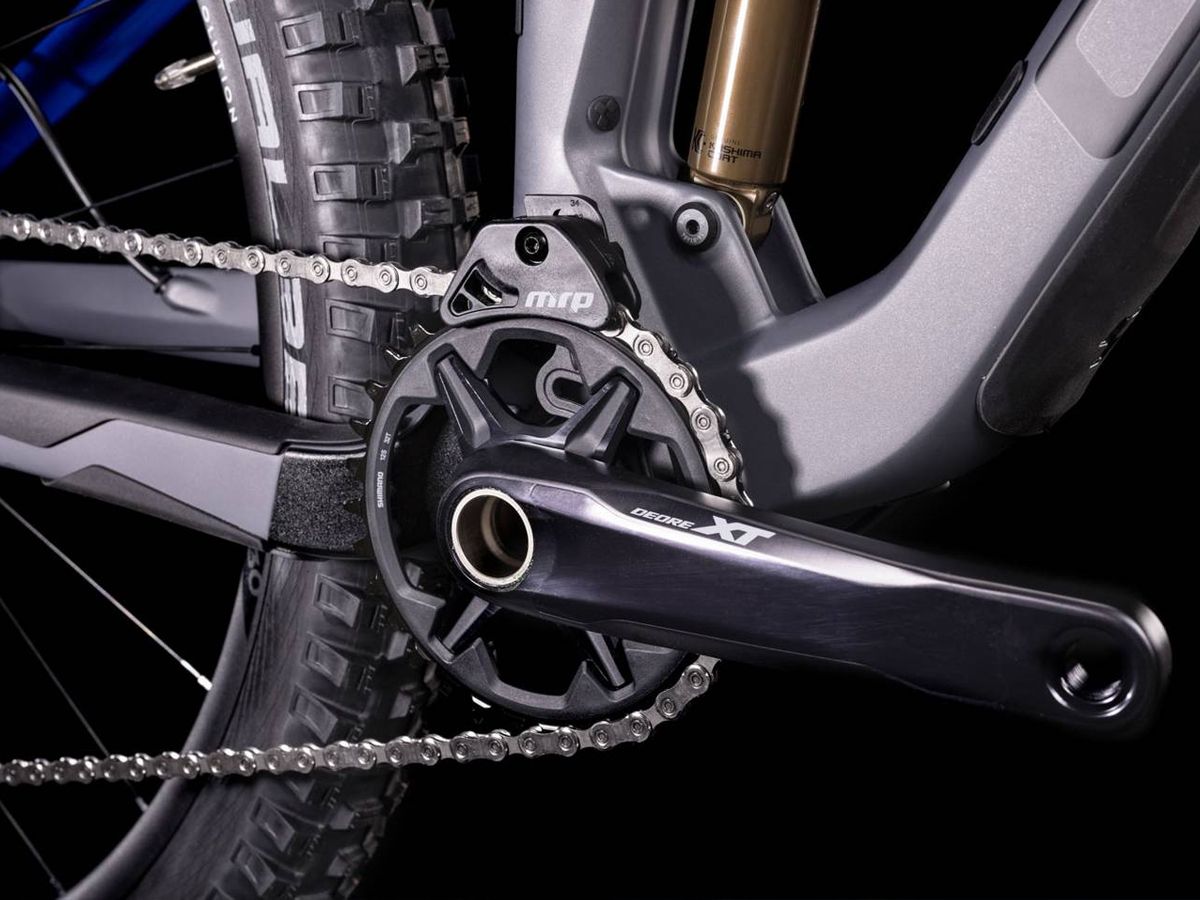

| Plato palanca | Shimano XT FC-M8100, 32T, Boost, 170mm | |
| Piñon | Shimano Deore CS-M6100, 10-51T | |
| FRENOS | Frenos | Shimano XT BR-M8120/M8100, Hydr. Disc Brake |
| Rotores | (203/180) | |
| COMPONENTES | Asiento | Natural Fit Nuance Lite |
| Avance | Race Face Aeffect R 35 | |
| Manillar | Race Face Chester 35, 780mm | |
| Puños | ACID Disrupt, Soft Compound | |
| RUEDAS | Ruedas | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Cubiertas | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 | |
| PESO | 14.5 kg |
| Medidas | Rodado | 29" | ||||
| Manillar | 780mm Largo | 35mm Altura | ||||
| Avance | ||||||
| Caño de asiento | 31.6 mm | S: 125mm | M/L: 150mm | XL: 175mm | ||
| Dimensiones Bielas | 170mm | |||||
| Talle cuadro | S | M | L | XL | ||
| Tamaño cuadro (cm) | ||||||
| ST | Tubo horizontal (mm) | 375 | 425 | 470 | 520 | |
| TT | Tubo horizontal(mm) | 571 | 592 | 616 | 643 | |
| CS | Largo de cadena (mm) | 435 | 435 | 435 | 435 | |
| HTA | Angulo tubo dirección (°) | 66 | 66 | 66 | 66 | |
| STA | Angulo tubo de asiento (°) | 75.5 | 75.5 | 75.5 | 75.5 | |
| BD | Drop caja de centros/frenos (mm) | -34 | -34.1 | -34.2 | -34.3 | |
| HT | Tubo de dirección (mm) | 95 | 100 | 110 | 130 | |
| FL | Largo horquilla(mm) | |||||
| R | Alcance(mm) | 417 | 437 | 457 | 477 | |
| S | Drop caja de centros/manillar (mm) | 619 | 624 | 633 | 651 | |
| WB | Distancia entre ejes (mm) | 1167 | 1189 | 1213 | 1241 | |
| SH | Altura al piso (mm) | |||||
| Altura recomendad usuario (cm) |
